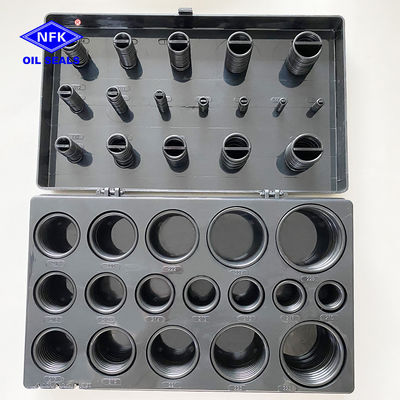

O-ring Box Kit American Parker (original) Spot Wholesale Set Small Nitrile Rubber O Ring Box for Mechanical Hydraulic Systems
商品の詳細
| ビデオ送信検査 | 利用不可 | 機械試験報告書 | 利用不可 |
|---|---|---|---|
| 保証 | 利用不可 | 製品名 | Oリングのキット |
| 材料 | NBR | スタイル | 油圧 |
| 標準か非標準か | 標準 | 塗布機 | 掘削機用Oリングキット |
| 標準 | グローバルスタンダード | 色 | 黒 |
| タイプ | Oリング | 証明書 | ISO3601 |
| MOQ | 1BOX | ||
| ハイライト | Parker O-ring box kit,Nitrile rubber O-ring set,Hydraulic system O-ring kit |
||
製品の説明
Products Description
| Product name | o-ring Kit |
| Product configuration information | Original brand factory |
| Model Number | Kit 4,Kit 5,Kit 6,Kit 7 |
| Brand Name | Parker(Original Brand) |
| Material | NBR |
| Quanlity | 382pcs/box,396pcs/box,407pcs/box,408pcs/box |
| Style | Hydraulic |
| Standard or Nonstandard | Standard |
| Application machine | O-ring Kit for Equipment |
| Standard | Globle Standards |
| Color | Black |
| Size | standard or customerized |
| Transport | air/sea/expressmail,etc |
| Packing | paper and carton |
| Type | o-ring |
| Delivery Time | 3-5 days after payment |

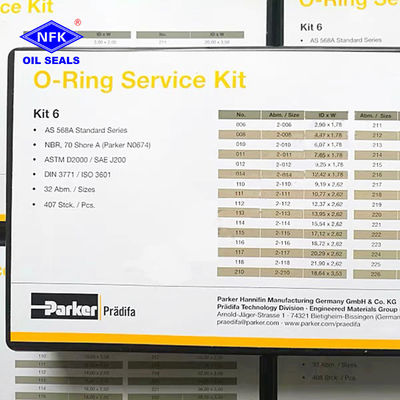

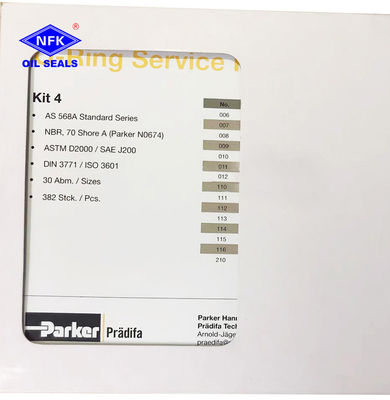

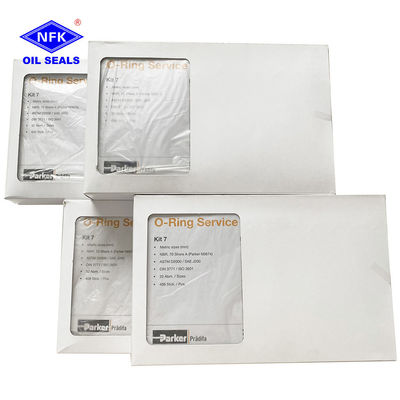

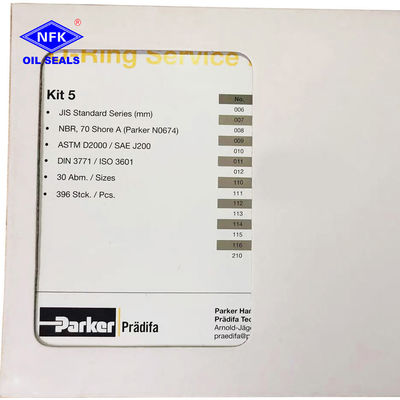

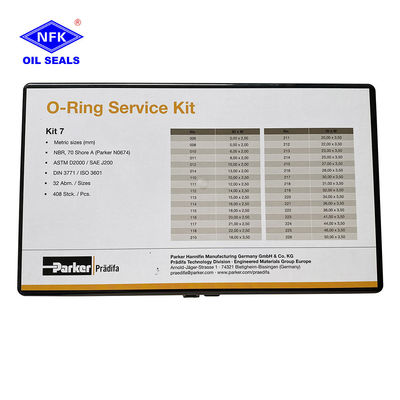

| Kit 4 (370404N0674) | Kit 5 (370405N0674) | Kit 6 (370406N0674) | Kit 7 (370407N0674) |
|---|---|---|---|
| 1 2-006 2.9*1.78 20 | 1 P3 2.8*19 20 | 1 2-006 2.9*1.78 20 | 1 3*2.0 20 |
| 2 2-007 3.68*1.78 20 | 2 P4 3.8*1.9 20 | 2 2-008 4.47*1.78 20 | 2 5*2.0 20 |
| 3 2-008 4.47*1.78 20 | 3 P5 4.8*1.9 18 | 3 2-010 6.07*1.78 20 | 3 6*2.0 18 |
| 4 2-009 5.28*1.78 20 | 4 P6 5.8*1.9 18 | 4 2-011 7.65*1.78 20 | 4 8*2.0 18 |
| 5 2-010 6.07*1.78 20 | 5 P7 6.8*1.9 18 | 5 2-012 9.25*1.78 20 | 5 10*2.0 18 |
| 6 2-011 7.65*1.78 20 | 6 P8 7.8*1.9 18 | 6 2-014 12.42*1.78 20 | 6 13*2.0 18 |
| 7 2-012 9.25*1.78 20 | 7 P9 8.8*1.9 14 | 7 2-110 9.19*2.62 13 | 7 10*2.5 14 |
| 8 2-110 9.19*2.62 13 | 8 P10A 9.8*1.9 14 | 8 2-111 10.77*2.62 13 | 8 12*2.5 14 |
| 9 2-111 10.77*2.62 13 | 9 P11 10.8*2.4 14 | 9 2-112 12.37*2.62 13 | 9 14*2.5 14 |
| 10 2-112 12.37*2.62 13 | 10 P12 11.8*2.4 14 | 10 2-113 13.94*2.62 13 | 10 15*2.5 14 |
| 11 2-113 13.94*2.62 13 | 11 P14 13.8*2.4 14 | 11 2-114 15.54*2.62 13 | 11 16*2.5 14 |
| 12 2-114 15.54*2.62 13 | 12 P16 15.8*2.4 14 | 12 2-115 17.12*2.62 13 | 12 18*2.5 14 |
| 13 2-115 17.12*2.62 13 | 13 P18 17.8*2.4 14 | 13 2-116 18.72*2.62 13 | 13 20*2.5 14 |
| 14 2-116 18.72*2.62 13 | 14 P20 19.8*2.4 13 | 14 2-117 20.29*2.62 13 | 14 21*2.5 14 |
| 15 2-210 18.64*3.53 10 | 15 G20 20*3 11 | 15 2-118 21.89*2.62 13 | 15 22*2.5 14 |
| 16 2-211 20.22*3.53 10 | 16 G22 22*3 12 | 16 2-210 18.64*3.53 10 | 16 18*3.5 10 |
| 17 2-212 21.82*3.53 10 | 17 G22.4 22.1*3.5 10 | 17 2-211 20.22*3.53 10 | 17 20*3.5 10 |
| 18 2-213 23.39*3.53 10 | 18 G25 24.4*3.1 12 | 18 2-212 21.82*3.53 10 | 18 22*3.5 10 |
| 19 2-214 24.99*3.53 10 | 19 P25 24.7*3.5 10 | 19 2-213 23.39*3.53 10 | 19 23*3.5 10 |
| 20 2-215 26.57*3.53 10 | 20 P26 25.7*3.5 10 | 20 2-214 24.99*3.53 10 | 20 25*3.5 10 |
| 21 2-216 28.17*3.53 10 | 21 G30 29.4*3.1 11 | 21 2-215 26.57*3.53 10 | 21 27*3.5 10 |
| 22 2-217 29.74*3.53 10 | 22 P30 29.7*3.5 10 | 22 2-216 28.17*3.53 10 | 22 28*3.5 10 |
| 23 2-218 31.34*3.53 10 | 23 P32 31.7*3.5 10 | 23 2-217 29.74*3.53 10 | 23 30*3.5 10 |
| 24 2-219 32.92*3.53 10 | 24 P34 33.7*3.5 10 | 24 2-218 31.34*3.53 10 | 24 31*3.5 10 |
| 25 2-220 34.52*3.53 10 | 25 G35 34.4*3.1 11 | 25 2-219 32.52*3.53 10 | 25 32*3.5 10 |
| 26 2-221 36.09*3.53 10 | 26 P36 35.7*3.5 10 | 26 2-220 34.52*3.53 10 | 26 34*3.5 10 |
| 27 2-222 37.69*3.53 10 | 27 G40 39.4*3.1 11 | 27 2-221 36.09*3.53 10 | 27 36*3.5 10 |
| 28 2-325 37.47*5.33 7 | 28 P40 39.7*3.5 10 | 28 2-222 37.69*3.53 10 | 28 38*3.5 10 |
| 29 2-326 40.64*5.33 7 | 29 G45 44.7*3.1 11 | 29 2-223 40.87*3.53 10 | 29 41*3.5 10 |
| 30 2-327 43.84*5.33 7 | 30 P48 47.7*3.5 10 | 30 2-224 44.84*3.53 10 | 30 44*3.5 10 |
| 31 2-225 47.22*3.53 10 | 31 46*3.5 10 | ||
| 32 2-226 50.39*3.53 10 | 32 50*3.5 10 |
Product Overview
|
Production Information
|
||||
|---|---|---|---|---|
| Material | Hardness (Shore A) | Temperature | Size | |
| Standard Size | Available | |||
| NBR(Buna, Nitrile) FKM(VlTON, FPM) EPDM Silicone(VMQ) HNBR FFKM(FFKM, Kalrez) | 60~90 70~90 60~90 40~70 60~90 70~90 |
-40℃-110℃ -20℃-220℃ -45℃-150℃ -55℃-204℃ -48℃-180℃ -18℃-326℃ | AS-568(USA) JIS-B2401(Japan) DIN-3771(Germany) BS-1516(UK) ISO3601(International) R(France) |
ID≤2000mm CS≤40mm |
| Resistance | Color | Certificate | Application | |
| Hydraulic Fluid Engine Oil Chemical Ozone & UV Steam & Hot Water Low Temperature High Temperature | Black Brown Red Green White Blue Clear Customized |
ISO9001 ISO14001 TS16949 S G S RoHS REACH |
Auto Industry Construction Machinery Machine Tool Equipment Food Health Water Treatment Chemical Processing Hydraulic Pneumatic Industrial Manufacturing |
|
